Galileo Reflection™

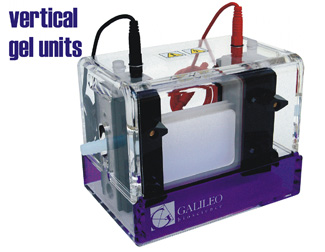

Dual-Gel Vertical Gel Units

Run either one or two gels simultaneously on these versatile vertical separation systems from Galileo Bioscience.

overview of vertical systems -

Choose from four sizes of Galileo Refection™ twin gel vertical electrophoresis devices.

	85-1010	85-2010	85-1614	85-2020
description	Mini twin Vertical	Wide twin mini vertical	Midi twin vertical	Large twin vertical
unit dimensions (cm)	17W x 14H x 12D	28W x 15H x 13D	21W x 24H x 14D	24W x 31H x 17D
gel size (cm)	10W x 10L	20W x 10L	16W x 14L	20W x 20L
buffer capacity	400ml	850ml	700ml	1300ml
acrylamide gel volume	6-15ml	15-30ml	14-27ml	25-49ml
max sample capacity/gel	15	36	24	25
max sample capacity/unit	30	72	48	50
current requirement	15-35mA per gel	15-45mA per gel	15-50mA per gel	15-75mA per gel
run time	30-60 min	30-90 min	60-120 min	60-180 min
standard features	platinum electrodes non-slip feet optional cooling chamber	platinum electrodes non-slip feet optional cooling chamber	platinum electrodes non-slip feet optional cooling chamber	platinum electrodes non-slip feet optional cooling chamber
safety features	safety cover sheathed power leads	safety cover sheathed power leads	safety cover sheathed power leads	safety cover sheathed power leads
included glass plates	4 plain 10 x 10 x 0.24cm 2 notched 10 x 10 x 0.24cm	4 plain 20 x 10 x 0.32cm 4 notched 20 x 10 x 0.32cm	4 plain 1 6x 14 x 0.32cm 4 notched 16 x 14 x 0.32cm	4 plain 10x10x024cm 2 notched 10x10x0.24cm
included combs	2 10 well @ 0.8mm	2 15 well @ 0.8mm 2 20 well @ 0.8mm	2 10 well @ 1.5mm 2 15 well @1.5mm	2 15 well @ 1.5mm 2 20well @1.5mm
included spacer	4 @ 0.8mm	8 @ 0.8mm	8 @ 1.5mm	8 @ 1.5mm

gel casting options-

These Galileo Reflection™ vertical units all feature a cast in place sytem for quick, tape-free gel casting. The gel sandwich of glass and spacers is attached to the upper buffer chamber in the normal gel run position. The upper buffer chmber is then placed on a gasketed casting base to seal the lower edges of the gel. Gels are then poured as norma, and after the gels have polymerized, the completed gels and upper buffer chamber are transferred to the lower buffer chamber for running.

vertical systems -

1010 twin-gel vertical system

2010 extra-wide, twin-gel vertical system

1614 large format, twin-gel vertical system

2020 large format, twin-gel vertical system

system accessories -

casting bases - included with all units, extra bases available

glass plates
