Galileo Minigel Systems

Galileo offers three different sized mini-gel devices and two gel casting options.

Note that Galileo mini-gel accessories, including trays and combs, also fit many other gel units from other suppliers.

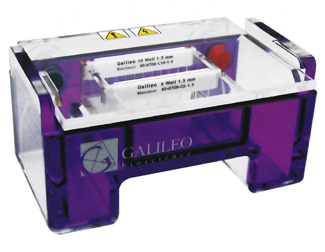

minigel 1 units -

minigel 1 units are ideal for short, quick runs on small sample numbers

	0708	0911
unit dimensions (cm)	12W x 17.6L x 9.5H	152W x 22L x 9.5H
gel size (cm)	7W x 8L	9W x 11L
buffer capacity	400ml	600ml
gel volume (0.5cm thick)	28ml	50ml
max sample capacity	24	36
max samples /full length run	12	18
electrode separation length	18cm	19cm
standard features	epoxy-sealed connections platinum electrodes non-slip feet	epoxy-sealed connections platinum electrodes non-slip feet
safety features	safety cover sheathed power leads	safety cover sheathed power leads
included tray	RapidCast UV transmissible fluorescent ruler 2 comb slots	RapidCast UV transmissible fluorescent ruler 2 comb slots
included combs	1.5mm, 6 & 10 well *	1.5mm, 10 & 14 well *
options	optional buffer ports	optional buffer ports
running conditions	60 volts*	90 volts*
	*Value = 5 volts/cm of electrode separation

minigel 2 units -

minigel 2 units are wider for more sample capacity

	1214	New! 1515
unit dimensions (cm)	18W x 24.5L x 9.5H	21W x 26L x 9.5H
gel size (cm)	12W x 14L	15W x 15L
buffer capacity	800ml	1020ml
gel volume (0.5cm thick)	84ml	112ml
max sample capacity	100	112
max samples /full length run	25	28
electrode separation length	22.5cm	24cm
standard features	epoxy-sealed connections platinum electrodes non-slip feet	epoxy-sealed connections platinum electrodes non-slip feet
safety features	safety cover sheathed power leads	safety cover sheathed power leads
included tray	RapidCast UV transmissible fluorescent ruler 2 comb slots	RapidCast UV transmissible fluorescent ruler 2 comb slots
included combs	1.5mm, 12 & 20 well	1.5mm, 12 & 20 well
options	optional buffer ports or NEW* automatic buffer recirculation	optional buffer ports
running conditions	115 volts*	120 volts*
	*Value = 5 volts/cm of electrode separation (constant current)

buffer recirculation options -

All units can be ordered with buffer ports as an option. In addition, the 1214 unit now can be ordered with a built-in automatic buffer recirculation system, that require no additional attachments. See the link for more information on the new Galileo auto-recirc systems.

gel casting options -

These Galileo mini-gel units all feature end-gasketed RapidCast gel trays for quick, tape-free gel casting. When rotated 90 degrees from the normal run position, these trays will form a leak-proof seal against the sides of the unit's buffer chamber. RapidCast casting units are also available for casting gels outside the unit. In addition, standard flush-cut trays featuring longer run lengths for increased sample resolution are also available for all units. Click the link for more information on casting.

products and accessories -

G-80-2314 wide-format mini-gel

Galileo gel casting systems

Galileo mini-gel combs- see unit listings or the Accessory Cross Reference Sheet
