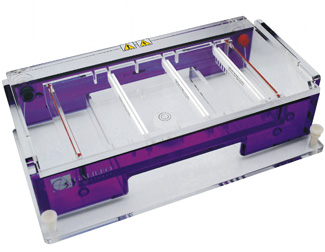

Galileo Large Format Electrophoresis Systems

Galileo offers four large format sytems for researchers requireing longer run lengths and increased sample capacity.

All Galileo large format units use the ExpressCast gel casting system for quick, tape-free gel casting.

unit comparison chart - mid sized units

These units offer long run lengths and mid sized sample capacity.

	81-1325	New! 1515
unit dimensions (cm)	21.5W x 37.5L x 10.5H	21W x 26L x 9.5H
gel size (cm)	13W x 25L	15W x 15L
buffer capacity	1600ml	1020ml
gel volume (0.5cm)	163ml	112ml
max sample capacity	112	112
max samples /full length run	28	28
electrode separation length	34.3cm	24cm
standard features	epoxy-sealed connections platinum electrodes leveling screws & level	epoxy-sealed connections platinum electrodes non-slip feet
safety features	safety cover sheathed power leads	safety cover sheathed power leads
casting system	Galileo ExpressCast gasketed end gates	Galileo ExpressCast gasketed end gates
included tray	UV transmissible fluorescent ruler 6 comb slots	UV transmissible fluorescent ruler 2 comb slots
included combs	1.5mm, 12, 16 & 20 well	1.5mm, 12 & 20 well
options	optional buffer ports	optional buffer ports
running conditions	170 volts*	120 volts*
	*Value = 5 volts/cm of electrode separation (constant current)

unit comparison chart - full sized units

These units offer large sample capacity and longer run lengths.

	81-1525	81-2025
unit dimensions (cm)	23.5W x 37.5L x 10.5H	29W x 37.5L x 10.5H
gel size (cm)	15W x 25L	20W x 25L
buffer capacity	1850ml	2300ml
gel volume (0.5cm thick)	188ml	250ml
max sample capacity	112	168
max samples /full length run	28	42
electrode separation length	34.3cm	34.3cm
standard features	epoxy-sealed connections platinum electrodes leveling screws & level	epoxy-sealed connections platinum electrodes leveling screws & bubble level
safety features	safety cover sheathed power leads	safety cover sheathed power leads
casting system	Galileo ExpressCast gasketed end gates	Galileo ExpressCast gasketed end gates
included tray	UV transmissible fluorescent ruler 4 comb slots	UV transmissible fluorescent ruler 6 comb slots
included combs	your choice	1.5mm, 16, 24 & 36 well *
options	optional buffer ports	optional buffer ports or NEW* automatic buffer recirculation
running conditions	170 volts*	170 volts*
	*Value = 5 volts/cm of electrode separation

buffer recirculation options -

The 2025 and 2325 units now can be ordered with built-in automatic buffer recirculation systems, that require no additional attachments. See the link for more information on the new Galileo auto-recirc systems.

gel casting options -

These Galileo gel units all feature the ExpressCast™ system for quick, tape-free gel casting. Standard flush-cut trays are also available for all units. Click the link for more information on Galileo casting systems.
